Dive In! Anchoring Your Swim Dock the Right Way

Why Your Swim Dock Needs a Solid Anchor

A swim dock anchor is the foundation that keeps your floating dock stable and secure. Without proper anchoring, your dock can drift, tip over, or become damaged during storms, putting your family's safety and waterfront investment at risk.

Key Components of a Secure Swim Dock Anchor System:

• Anchor Type: Deadweight concrete blocks (minimum 600 lbs at corners), mushroom anchors, or helical anchors.
• Hardware: 3/8\" galvanized chain, stainless steel shackles, eyebolts, and turnbuckles.
• Layout: Crisscross (X-pattern) configuration for maximum stability.
• Chain Length: 1.5 to 2 times your water depth with proper slack for tidal changes.
• Weight Requirements: Total anchor weight should be at least twice your dock's weight.

Your floating dock needs to move with the waves while staying firmly in place. As one Long Island homeowner learned, \"a dock that breaks free during a nor'easter can damage neighboring boats and cost thousands in repairs.\"

Proper anchoring protects your investment, ensures family safety, and provides peace of mind during Long Island's unpredictable weather. A well-anchored swim dock can even protect boats during hurricanes better than fixed docks, as documented by FEMA. The difference between a dock that survives a storm and one that becomes driftwood is the anchoring system. With strict codes in Nassau and Suffolk Counties, getting it right the first time saves you from penalties and costly repairs.

Swim dock anchor further reading:

• anchoring a floating dock
• dock anchors for a floating dock
• floating dock anchoring systems

Before You Drop Anchor: Assessing Your Waterfront

Before installing a swim dock anchor system, you must understand your waterfront.

Water depth is the starting point, determining the chain length and anchor weight needed. The deeper the water, the more holding power is required.

The bottom type is also critical. Sand offers decent holding but can shift. Mud is excellent for mushroom anchors, which can embed themselves, but deadweight anchors may sink over time. Rock bottoms are stable for concrete blocks but render mushroom anchors useless.

The water body type shapes your strategy. A calm lake has different needs than an exposed bay on Long Island. The fetch distance—the area wind can travel over water—directly impacts wave size. Wave action and currents constantly test your system.

On Long Island, the tidal range is a major factor. Your anchor system must accommodate water levels that rise and fall several feet daily.

Finally, local regulations and permitting in Nassau and Suffolk Counties are not just bureaucracy; they protect you from costly mistakes and legal issues.

For comprehensive guidance on marine construction projects, visit our Dock And Marine Construction page.

Understanding Your Site's Conditions

The difference between protected coves and open water exposure is significant. A dock in a sheltered cove is naturally protected, while one in open water faces the full force of storms. We design for the worst-case scenario.

Seasonal changes and water level fluctuations also pose challenges. Spring snowmelt can raise water levels, while late summer may bring the lowest levels. Your swim dock anchor system needs enough flexibility to handle these variations.

Ice formation risk is a serious concern in our region, as it can lift or crush structures. Many owners remove floating docks during winter, leaving only the anchor systems.

For specific insights about lake installations, explore our guide on Floating Docks For Lakes.

The Importance of Permits on Long Island

Do you need a permit for an anchor? On Long Island, the answer is almost always yes. Nassau County regulations and Suffolk County regulations are legally binding.

Municipal codes add another layer of requirements that vary by township. These rules protect water quality, ensure navigation safety, and prevent neighborly disputes.

Avoiding penalties starts with understanding the rules. Fines, forced removal, and legal complications can be far more expensive than the permit fees. The permit process is often faster in the fall and winter, so starting early is wise. Our team has extensive experience navigating the permitting landscape with agencies like the NYSDEC and the Army Corps of Engineers, ensuring your project complies from the start.

For ongoing maintenance and repair needs, our specialists handle Long Island Dock Repair with the same attention to regulatory compliance.

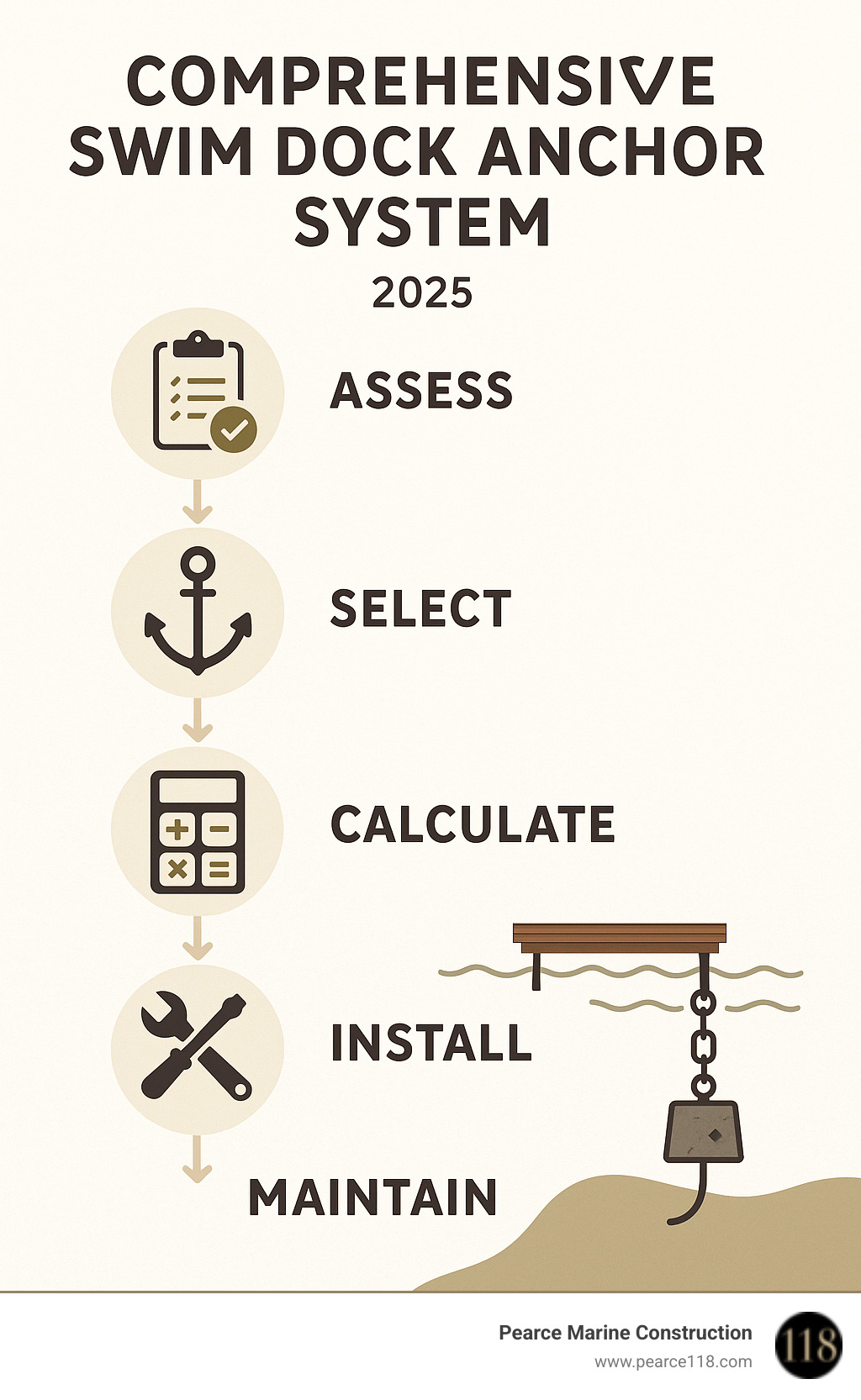

The Ultimate Guide to Your Swim Dock Anchor System

With your waterfront assessed, it's time to build a rock-solid swim dock anchor system. The difference between a dock that survives a storm and one that becomes driftwood often comes down to the right anchor type, weight, and hardware.

For a comprehensive overview of different anchoring approaches, check out our guide on Floating Dock Anchoring Systems.

Choosing the Right Type of Swim Dock Anchor

Your bottom conditions dictate the best anchor type. Here’s a comparison:

Deadweight anchors (concrete or granite blocks) are straightforward and reliable for most Long Island conditions. Purpose-built blocks are recommended over small DIY pails of concrete, which are only suitable for small rafts.

Mushroom anchors excel in soft, muddy bottoms found in many local bays, burying themselves for powerful holding. They are ineffective on rocky bottoms.

Helical anchors are a premium choice for maximum holding power. These massive screws are installed professionally and can support immense loads, making them ideal for large docks or challenging conditions.

Pile and sleeve systems are the gold standard. Permanent pilings are driven into the seabed, and the dock floats on sleeves around them, perfectly handling water level changes.

To learn more about selecting the right anchors for your specific situation, visit our detailed guide on Dock Anchors For A Floating Dock.

Calculating Anchor Weight: The Physics of Staying Put

Due to Archimedes' Principle, anchors lose weight when submerged. A 150-pound concrete anchor provides only about 75 pounds of holding force underwater because water creates an upward buoyant force.

Our recommendations are based on decades of Long Island storm seasons: a minimum of 600 pounds of anchor weight at each corner at the end of your dock, and 450 pounds per side for sections closer to shore. For standing docks, use 450 pounds per corner and anchor every 24 feet.

Our golden rule: the total anchor weight should be at least twice the weight of the dock itself. A typical 12' x 24' dock might need 3,300 pounds of holding force. It's always better to have too much weight than not enough. The cost of proper anchoring is minimal compared to dock replacement.

For a deeper understanding of the physics involved, you can learn more about Archimedes' Principle. We also have a comprehensive guide on How Do You Anchor A Floating Dock.

Essential Hardware and Materials

Your anchors are only as good as their connecting hardware. The marine environment is unforgiving, so don't cut corners here.

Galvanized chain is superior to rope for its durability, abrasion resistance, and added weight. We recommend a minimum of 1/4\" chain, but 3/8\" chain is ideal for larger docks or rougher waters.

Stainless steel shackles are critical for connecting chains to anchors and the dock. They must be marine-grade for corrosion resistance, especially in saltwater.

Eyebolts create strong attachment points on your dock, while turnbuckles allow for fine-tuning chain tension.

The durability of 3/8\" galvanized chain is far superior to rope, as it resists wear from currents, debris, and marine growth.

An important environmental note: avoid using concrete-filled tires as anchors. We now know that tires may leach harmful chemicals into the water. We always recommend environmentally responsible solutions.

Step-by-Step Installation: Deploying Your Anchors Like a Pro

With proper preparation and a methodical approach, you can deploy your swim dock anchor system safely and effectively. Always work with a partner, wear life jackets, and check the weather before starting any work on the water.

For comprehensive guidance on the entire process, check out our detailed guide on How To Anchor A Floating Dock.

The Best Anchor Layout: The Crisscross (X-Pattern) Advantage

The crisscross (X-pattern) configuration dramatically improves dock stability. Instead of running chains straight out, you connect each corner to an anchor positioned diagonally across from it. This creates opposing forces that lock the dock in place, reducing side-to-side sway and wear on hardware.

We witnessed this during Hurricane Sandy. Docks with X-pattern anchoring rode out the storm, while those with straight-run layouts broke free. As one Oyster Bay client said, \"My neighbor's dock ended up three houses down, but mine didn't budge an inch.\" The X-pattern also helps prevent chains from tangling with boat propellers.

For more insights on proper anchoring techniques, visit our comprehensive guide on Anchoring A Floating Dock.

A Step-by-Step Guide to Installing Your Swim Dock Anchor

1. Mark Positions: On dry land, measure your X-pattern, placing anchor spots 3-4 feet from the dock's corners. Mark these spots on the water with buoys.
2. Prepare on Shore: Attach chains and shackles to each anchor on solid ground.
3. Protect Your Dock: Lay down wooden planks on your dock to distribute the weight of the anchors and prevent damage during loading.
4. Deploy Methodically: Slowly lower each anchor to its marked position. Use a winch or get help for heavy anchors to avoid injury.
5. Connect Chains: Attach the chains to the dock's eyebolts using stainless steel shackles, ensuring they align with your X-pattern.
6. Double-Check: Ensure every shackle pin is tight. A small amount of marine-grade thread locker can prevent them from loosening over time.

If you're in the Massapequa area and prefer professional installation, our experienced team is ready to help with Massapequa Dock Installation Services.

Getting the Right Tension: Calculating and Adjusting Chain Length

Proper chain scope is critical. Too short, and high tide could submerge your dock; too long, and it will drift excessively.

Use the 1.5 to 2 times water depth rule as a starting point. For 8 feet of water, you'll need 12-16 feet of chain. This allows part of the chain to lie on the seabed, increasing holding power and acting as a shock absorber.

Always account for Long Island's tidal range, adding 1-2 feet of extra slack for seasonal water level changes.

Turnbuckles are essential for fine-tuning chain tension throughout the seasons. They allow you to find the sweet spot where the dock moves naturally with the waves without stressing the anchor points or drifting too much.

For more information on connecting your floating dock to shore, explore our guide on Attach Floating Dock To Shore.

Long-Term Care: Maintenance and Common Mistakes

Installing your swim dock anchor system correctly is a huge accomplishment, but ongoing care is required to ensure safety and longevity. Neglecting maintenance can lead to costly repairs and safety hazards.

For comprehensive upkeep, our services include Repairs And Maintenance for your marine structures.

Common Anchoring Mistakes to Avoid

Learning from common mistakes can save you headaches and money.

• Undersized anchors: This is the most frequent and dangerous error. Anchors lose significant weight underwater. You need at least 600 lbs for corner anchors and 450 lbs for sides.
• Insufficient chain slack: Chains that are too tight can pull your dock underwater during high tides. Always leave enough slack for water level fluctuations.
• Mixing metals: In saltwater, combining different metals like stainless steel and galvanized steel causes galvanic corrosion, which weakens your system. Stick to one compatible material.
• Ignoring permits: On Long Island, failing to get permits from local municipalities, the NYSDEC, and the Army Corps of Engineers can lead to fines and forced removal.
• Improper layout: A straight-run anchor layout is less stable than the recommended crisscross (X-pattern), making your dock more likely to sway and drift.

For more insights on proper floating dock construction techniques, visit our detailed guide on Floating Dock Construction.

Your Seasonal Maintenance Checklist

Regular inspections are key to a reliable swim dock anchor system.

• Spring Inspection: After the winter thaw, check all chains for wear and rust. Inspect shackles and hardware for corrosion. Adjust chain tension for current water levels.
• Fall Check-up: Before winter, identify and fix any issues that arose over the summer. This is especially important if you remove your dock for the winter.
• Inspect Chains and Hardware: Look for thinning links, stretching, or severe rust. Ensure all shackle bolts are tight. Replace any components showing significant deterioration.
• Adjust Tension: Use turnbuckles to adjust tension as needed throughout the season to accommodate changing water levels.

For expert assistance with larger repairs or custom pier projects, our team of Long Island Custom Pier Builders is always here to help.

DIY Anchors and When to Call for Professional Help

For small rafts in calm, shallow water, DIY anchors like concrete-filled 5-gallon pails (about 99 lbs) can work. However, they have significant limitations: insufficient weight for real docks, durability concerns as plastic degrades, and a lack of engineering for your specific site conditions.

For most applications, we recommend professional installation. Call for help with deep water challenges, helical anchor installation (which requires special equipment), or sites with heavy wave exposure or strong currents. If you notice structural damage to your dock or face complex permitting, professional help is essential.

As one of our lead craftsmen says, \"I've never regretted installing extra anchoring, but I've certainly regretted not adding enough when a storm hits.\"

For professional assistance with your dock needs, contact our expert Dock Builders Long Island team.

Conclusion: Secure Your Fun for Years to Come

Getting your swim dock anchor system right is about creating a secure foundation for waterfront enjoyment. From assessing your Long Island waterfront and navigating local permits to choosing the right anchors and using the stable X-pattern layout, every step is crucial.

Remember the physics: your anchors lose about half their weight underwater, so using our recommended 600-pound corner and 450-pound side anchors is not overkill—it's smart planning. Proper anchoring protects your investment, keeps your family safe, and provides peace of mind. A well-anchored dock that moves gracefully with the water while staying firmly in place is a smart, lasting investment.

At Pearce Marine Construction, we've helped Long Island families secure their waterfront dreams for generations. Our woman-owned company brings meticulous craftsmanship and deep local expertise to every project in Nassau and Suffolk Counties. We understand the unique challenges of our local waters.

Whether you're a DIYer or need professional guidance for complex conditions, helical anchor installation, or permit navigation, we're here to help. Your waterfront enjoyment starts with a swim dock anchor system built to last.

For more information about our comprehensive boat dock services or to schedule a consultation, reach out today. Let us help you secure your fun for years to come.
